GODIAG GT105 ECU IMMO Kit & GT107 DSG Gearbox Adapter for PCMTuner Kess Ktag PCMFlash KTMBench

Highlights:

1. Read/write DSG Gearbox Data
2. Work for DQ250, DQ200, VL381, VL300, DQ500, DL501
3. Compatible with PCMTuner, Kess V2, KTAG, KTMBench etc
4. Easy Connection and Fast Response

GODIAG GT107 DSG Gearbox Data Adapter Support the Connection of:

Renault DC0/DC4 Gen2
Honda LUK UDCT
DQ200 (0AM) [WR/CK]
DQ250C (02E) [RD/WR/CK]
DQ250E/F (02E) [WR/CK]
DQ200MQB/G2 (0CW) [WR/CK]
DQ250MQB (0D9) [WR/CK]
VL300/V30 (01J/0AN) [WR/CK]
VL381 (0AW) [WR/CK]
DL501/G2 (0B5) [WR/CK]
DQ500 (0BH/0BT) [RD/WR/CK] reading when using a direct connection.
DQ200/MQB/G2 Boot (MICRO) [RD/WR/CK]
DQ200/MQB/G2 Boot (EEPROM) [RD/WR]
DQ250E/F/MQB Boot (MICRO) [RD/WR/CK]
DQ250E/F/MQB Boot (EEPROM) [RD/WR]
VL300/V30 BSL (FLASH) [RD/WR/CK]
VL300/V30 BSL (EEPROM) [RD/WR/CK]
VL381 Boot (MICRO) [RD/WR/CK]
VL381 Boot (EEPROM) [RD/WR]
DL501/G2 Boot (MICRO) [RD/WR/CK]
DL501/G2 Boot (EEPROM) [RD/WR]

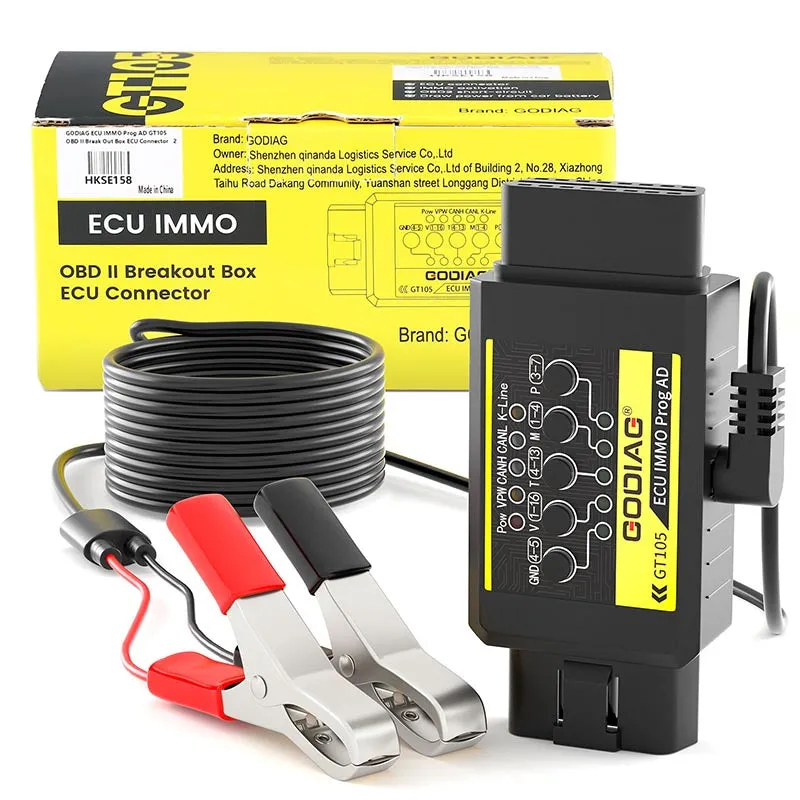

GT105 ECU IMMO Prog Adapter Features:

-A full-protocol ECU connection line for ECU programming power adjustment
-OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
-PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
-Standard OBD2 independent PIN4, PIN5.
-Pure copper female seat supports repeated insertion and removal, and has a long service life.
-Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
-The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
-The DC connector has a resettable 7A fuse.
-DC power interface, dedicated laboratory power connector.
-OBD2 universal jumper of good quality.

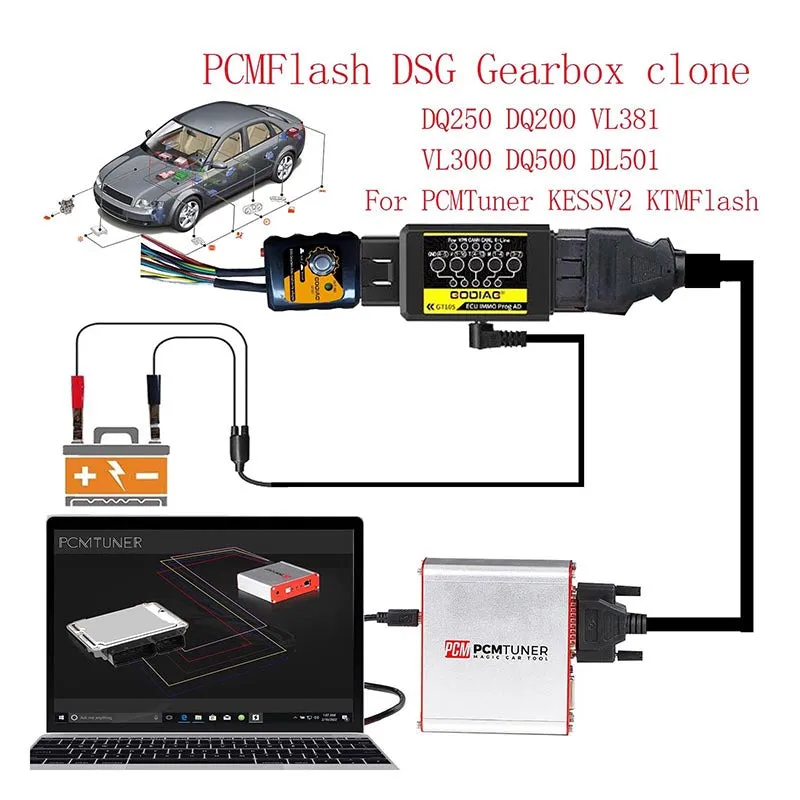

Easy Operation:
1. Connect Godiag GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect the Godiag ECU IMMO Prog AD and connect the vehicle battery.

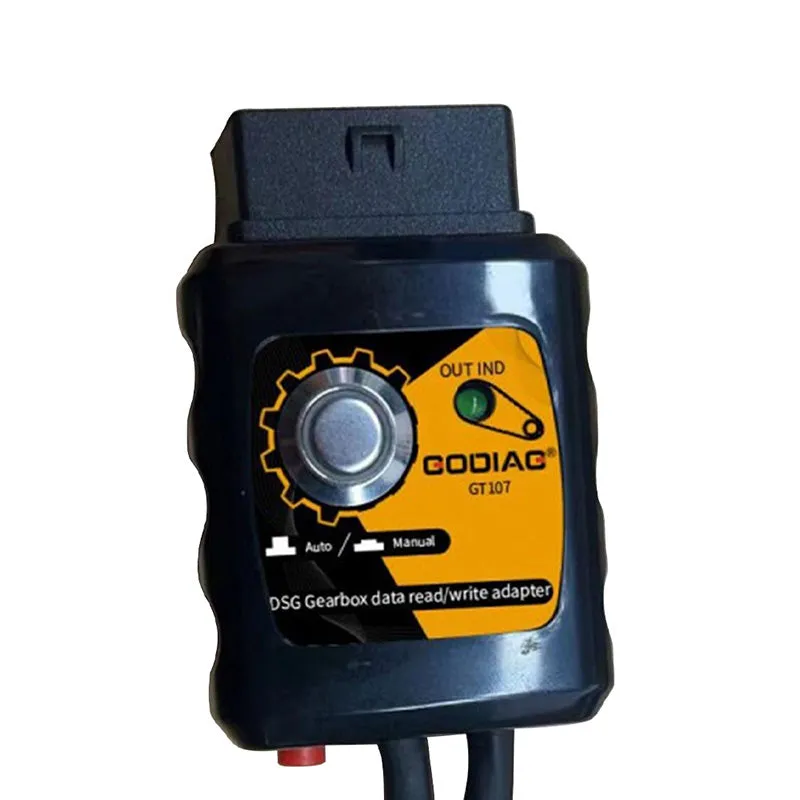

3. The Godiag GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Connect the computer to open the software and select “Auto”

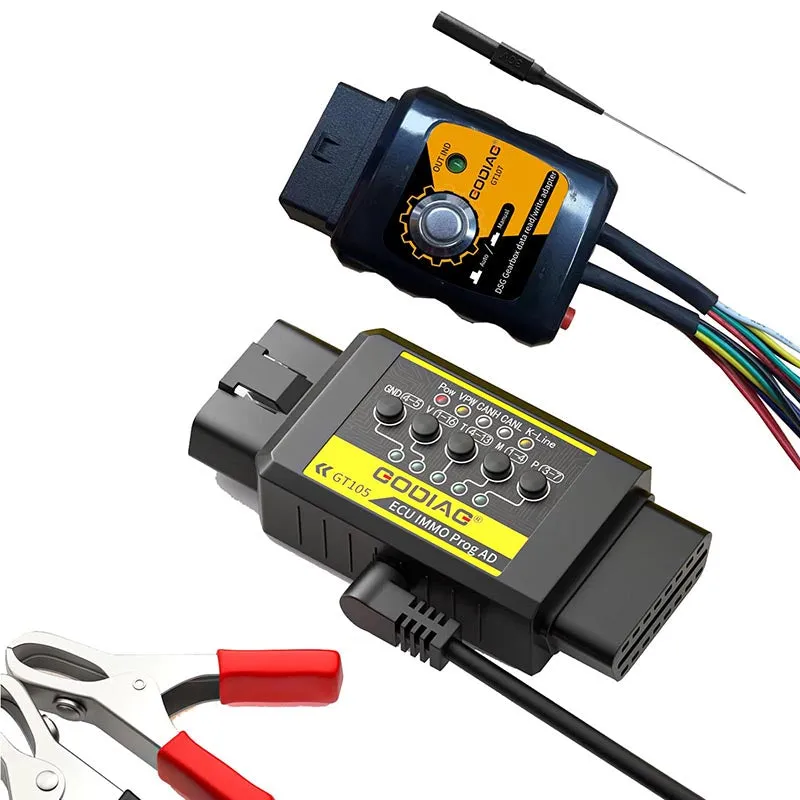

Package Includes:
1pc x Godiag ECU IMMO Prog AD
1pc x DSG Adapter
1pc x Power Cord with Battery Clip
1pc x Probe
